How to Use the Async System (Only ACC 3.x)

Only available since ACC 3.x

This feature is only compatible with ACC version 3.0 and above.

To load an UACCCreationComponent asynchronously, here’s what you need to do:

  • Implement soft path resolution in your handlers (UACCItemParamHandler and UACCParamHandler).
  • If you're working from Blueprints, it's a bit trickier due to limitations around handling references to non-UObject types (e.g., structs).
  • Call the async version of the load method instead of the regular LoadCreation.

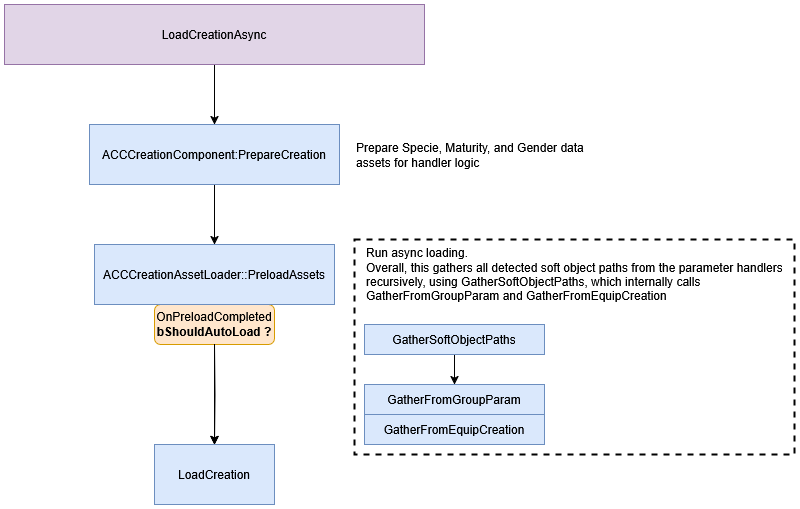

Quick Diagram :

Screenshot

Blueprint Side​

Preparing Asset Path Resolution​

In Blueprints, you need to enable the soft asset path resolution by ticking the appropriate checkbox in your handler:

Screenshot

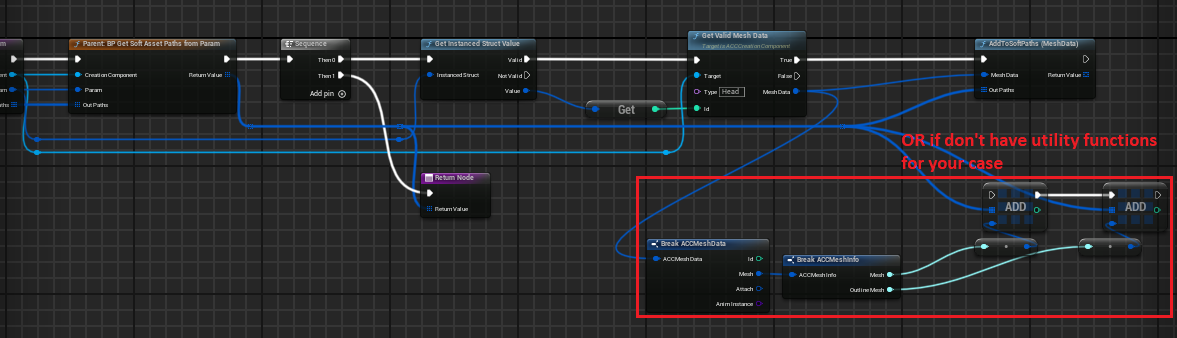

Then implement the resolution logic, for example to gather asset paths for a head mesh:

Screenshot

Calling LoadCreationAsync​

Once the setup is complete, you can call the async load node:

Screenshot

C++ Side​

Preparing Asset Path Resolution​

In C++, it’s much more straightforward. Just implement the method and gather the asset paths.
Example with the HairStyle handler:

void UACCParamHandler_HairStyle::GetSoftAssetPathsFromParam(UACCCreationComponent* CreationComponent,
	const FInstancedStruct& Param, TArray<FSoftObjectPath>& OutPaths)
{
	Super::GetSoftAssetPathsFromParam(CreationComponent, Param, OutPaths);

	if (Param.GetScriptStruct() == TBaseStructure<FACCIntParam>::Get())
	{
		const FACCIntParam& IntParam = Param.Get<FACCIntParam>();
		if (!IntParam.IsValid()) return;

		FACCMeshData MeshData;
		if (!CreationComponent->GetValidMeshData("Hair", IntParam.Value, MeshData))
		{
			return;
		}

		MeshData.AddToSoftPaths(OutPaths);
	}
}

Calling LoadCreationAsync​

Here’s how you can trigger the async load in C++:

UACCEngineSubsystem* ACCEngineSubsystem = GEngine->GetEngineSubsystem<UACCEngineSubsystem>();
auto AsyncCreationLibrary = ACCEngineSubsystem->GetAsyncCreationLibrary();
if (AsyncCreationLibrary)
{
    // Without callback
    AsyncCreationLibrary->LoadCreationAsync(Params);

    // With callback
    AsyncCreationLibrary->LoadCreationAsync(Params, FACCCreationAsyncCompleted::CreateLambda([](bool bSuccess)
    {
        // Handle completion
    }));
}
