Command Action

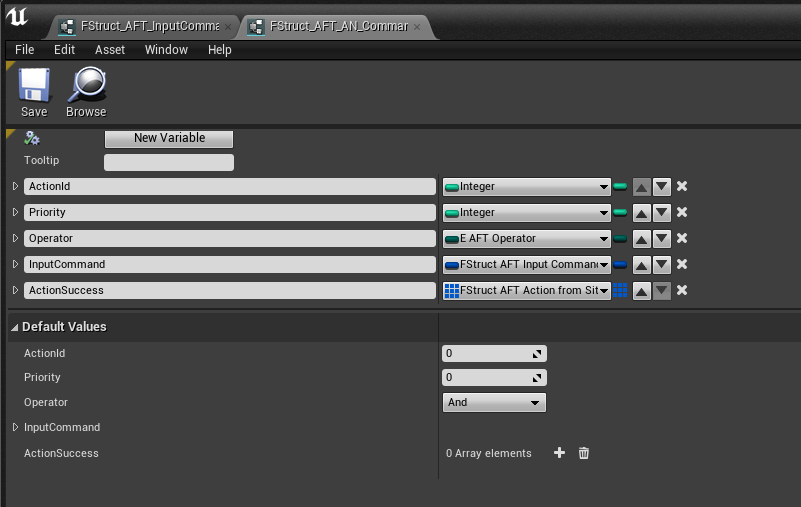

The struct CommandAction manage the execution of an Action from Input buffer sequence success execution

AFT - OLD

This struct have :

  • ActionId : The action to execute by default
  • Priority : The priority of the command action execution (if you have an another action starting with the same input sequence, you should give a higher priorty of the shortless command action)
  • Operator : AND or OR
  • InputCommand : More explain in the next section
  • ActionSuccess : The action execution from the character situation

Input Command​

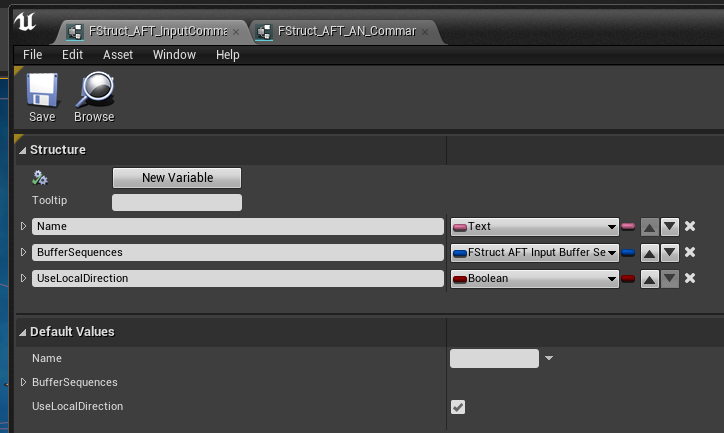

The input command it's the buffer sequences, but can precise if the arrow direction are relative of the character direction

AFT - OLD

Association with the Controller​

Before to see how the Command Action execute an Action, here is how the Input System detect your global input configuration

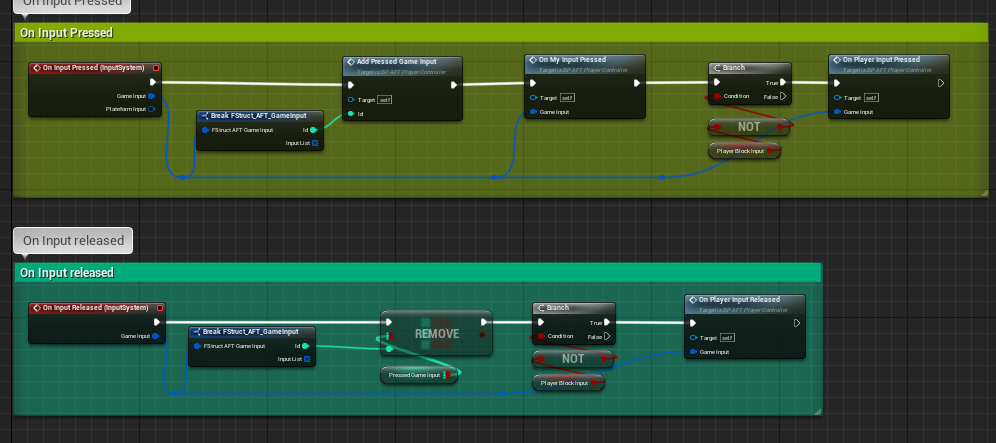

In the PlayerController :

AFT - OLD

And in the Fighter Controller, is the OnCommandActionSuccess event from Input System are called when you successfuly trigger a Command Action

AFT - OLD

The fighter attached to the controller will execute the action

Fighter Action Command​

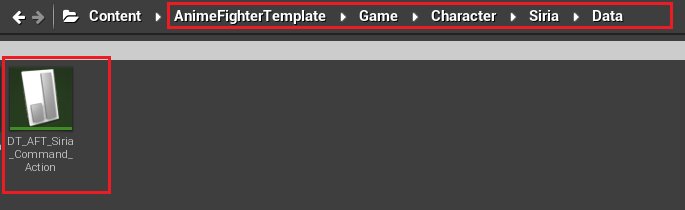

The list of the input command are stored in each character folder as a DataTable. For example in Siria character you can found this:

AFT - OLD

An example of one row :

AFT - OLD

Explain :

  • 3 Inputs - 2::Down | 4::Right | 5::W(A Button)
  • Action execution if success (from character situation)
