Architecture

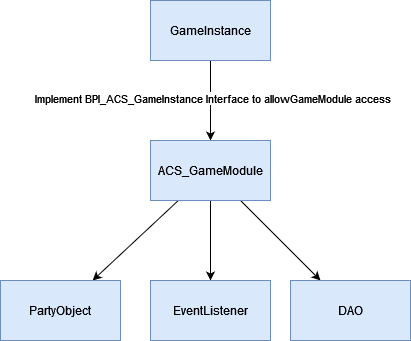

GameInstance and GameModule​

Screenshot

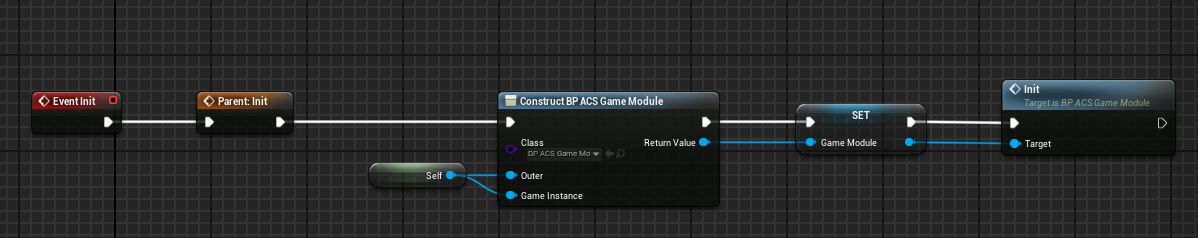

For example the BP_ACS_GameInstance init the GameModule :

Screenshot

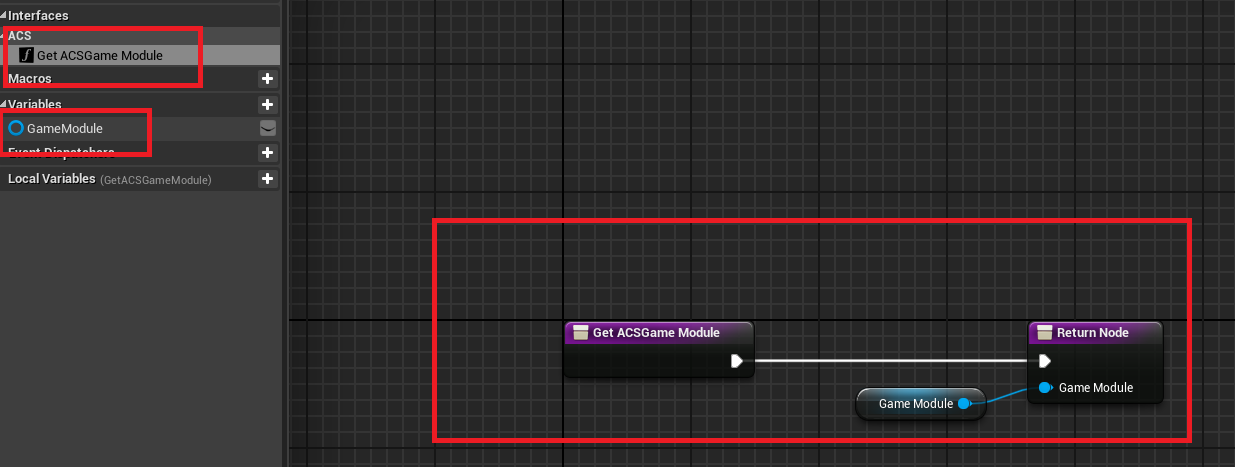

And implement the BPI_ACS_GameInstance for GetACSGameModule getter :

Screenshot

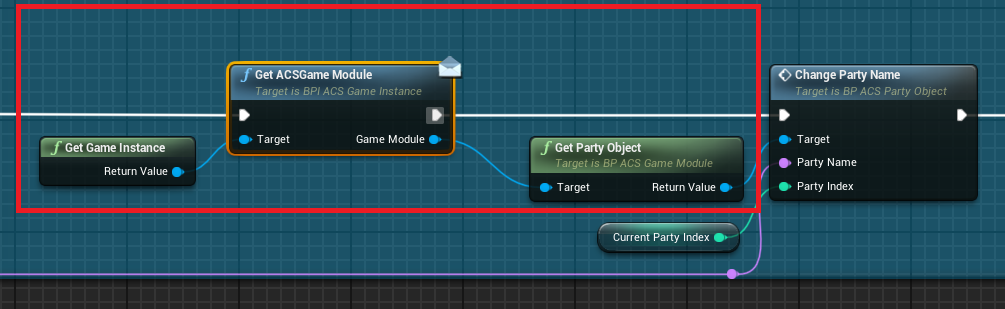

Example of access utilisation :

Screenshot

So if you want to use your own GameInstance, you will need to implement the interface and initialize the GameModule as explained.

UI Modal/Popup​

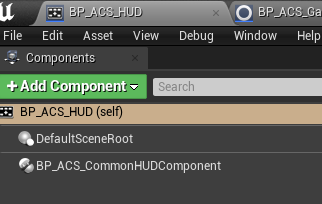

The automatic display of loading boxes or popups works thanks to the addition of the BP_ACS_CommonHUDComponent in the HUD, as you can see in BP_ACS_HUD :

Screenshot

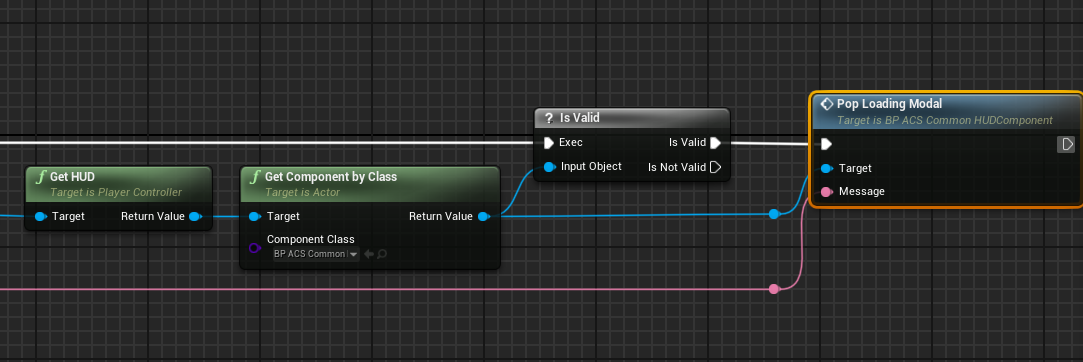

Example of where this is used:

Screenshot

So if you want to continue using this type of interface that displays in your own HUD, you will need to add the BP_ACS_CommonHUDComponent to your HUD.

HUD in GameMode

Don't forget to set the HUD in the GameMode if needed, in case you are using your own GameMode or HUD.
